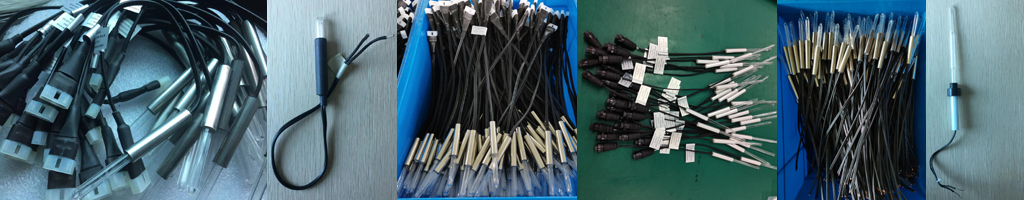

Typical Intensities of UVP Pen-Ray Lamps
Lamp Current	Typical Intensity 254nm @ 0.75" (microwatts/cm2)	Typical Intensity 365nm @ 0.75" (microwatts/cm2)	Lamp Operating Voltage	Lamp Body Temperature (degrees C)
90-0012-01 (Model 11SC-1)
5 mA AC	2000	65	375	55
10 mA AC	3600	105	330	80
15 mA AC	4400	145	300	100
25 mA AC	4750	215	260	145
35 mA AC	4100	330	230	185
90-0019-01 (Model 11SC-1L)
20 mA AC		1213	280	120
25 mA AC		1280	260	145
30 mA AC		1298	?
35 mA AC		1255	230	185
90-0020-01 (Model 11SC-2)
5 mA AC	1150	30	240	60
10 mA AC	1850	50	215	85
15 mA AC	1900	70	200	105
25 mA AC	1700	130	185	155
35 mA AC	1500	210	190	200
90-0004-01 (Model 3SC-9)
5 mA AC	800	50	590	30
15 mA AC	3300	130	600	39
25 mA AC	5400	200	570	48
35 mA AC	6700	250	530	54
50 mA AC	6900	300	480	64

Mercury Lamps
Part Number	Lighted Length	Total Length	Quartz Diameter	Handle Diameter	Primary Output	Cord Length/ Connector	Recommeded Power Supply
90-0001-04	0.88" (22.4 mm)	3.13" (79.5 mm)	0.362" (9.2 mm)	0.44" (11.2 mm)	302 nm	3" (76.2 mm) Std conn.	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0001-05	2.25" (57.2 mm)	4.5" (114.3 mm)	0.362" (9.2 mm)	0.44" (11.2 mm)	254 nm	16" (406.4 mm) Std conn.	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0002-01	0.75" (19.1 mm)	3.25" (82.6 mm)	0.256" (6.5 mm)	0.375" (9.5 mm)	254 nm	5" (127 mm) / Stripped	?
90-0003-01	2.12" (53.8 mm)	4.62" (117.3 mm)	0.256" (6.5 mm)	0.375" (9.5 mm)	254 nm	16" (406.4 mm) / Std conn.	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0004-01	9.0" (228.6 mm)	11.6" (295.1 mm)	0.375" (9.5 mm)	0.50" (12.7 mm)	254 nm	16" (406.4 mm) / Std conn.	PS-4 99-0004-01 (115 V) 99-0004-02 (230 V)
90-0004-03	8.0" (203.2 mm)	10.6" (269.7 mm)	0.375" (9.5 mm)	0.50" (12.7 mm)	254 nm	16" (406.4 mm) / Std. conn.	PS-4 99-0004-01 (115 V) 99-0004-02 (230 V)
90-0004-04	2" (50.8 mm)	4.6" (117.3 mm)	0.375" (9.5 mm)	0.50" (12.7 mm)	254 nm	16" (406.4 mm) / Std. conn.	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0004-07	6.0" (152.4 mm)	8.62" (218.9 mm)	0.375" (9.5 mm)	0.50" (12.7 mm)	254 nm	16" (406.4 mm) / Std conn.	PS-4 99-0004-01 (115 V) 99-0004-02 (230 V)
90-0004-10	9.0" (228.6 mm)	11.6" (295.1 mm)	0.375" (9.5 mm)	0.50" (12.7 mm)	254 nm	42" (1067 mm) / Stripped	PS-4 99-0004-01 (115 V) 99-0004-02 (230 V)
90-0004-11	6.0" (152.4 mm)	8.62" (218.9 mm)	0.375" (9.5 mm)	0.50" (12.7 mm)	254 nm	16" (406.4 mm) / Stripped	PS-4 99-0004-01 (115 V) 99-0004-02 (230 V)
90-0004-15	9" (228.6 mm)	11.6" (295.1 mm)	0.375" (9.5 mm)	0.50" (12.7 mm)	254 nm	15.63" (397 mm) / Special	PS-4 99-0004-01 (115 V) 99-0004-02 (230 V)
90-0012-01	2.12" (53.8 mm)	4.62" (117.3 mm)	0.256" (6.5 mm)	0.375" (9.5 mm)	254 nm	16" (406.4 mm) / Std. conn.	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0019-01	2.25" (57.2 mm)	4.62" (117.3 mm)	0.3" (6.5 mm)	0.375" (9.5 mm)	351/365 nm	16" (406.4 mm) / Std. conn.	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0019-04	2.25" (57.15 mm)	4.62" (117.3 mm)	0.3" (6.5 mm)	0.375" (9.5 mm)	351/365 nm	16" (406.4 mm) / Std. conn.	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0019-06	3.6" (91.8 mm)	6.1" (155.4 mm)	0.3" (6.5 mm)	0.4" (9.5 mm)	351/365 nm	16" (406.4 mm) / Std. conn.	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0020-01	0.75" (19.1 mm)	3.25" (82.6 mm)	0.256" (6.5 mm)	0.375" (9.5 mm)	254 nm	16" (406.4 mm) / Std. conn.	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0033-01	0.94" (23.9 mm)	2.84" (72.1 mm)	0.36" (9.2 mm)	0.44" (11.2 mm)	254 nm	6" (152 mm) / Stripped	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0033-02	0.94" (23.9 mm)	2.84" (72.1 mm)	0.36" (9.2 mm)	0.44" (11.2 mm)	254 nm	20" (508 mm) / Stripped	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0033-03	0.94" (23.9 mm)	3" (76.2 mm)	0.36" (9.2 mm)	0.44" (11.2 mm)	254 nm	10" (254 mm) / Stripped	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0037-01	2.12" (53.8 mm)	4.87" (123.69 mm)	0.256" (6.5 mm)	0.5" (12.7 mm)	254 nm	12" (304.8 mm) / Std. conn.	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0041-02	2.12" (53.8 mm)	4.62" (117.3 mm)	0.256" (6.5 mm)	0.375" (9.5 mm)	254 nm	5.5" (139.7 mm) / Special	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0059-01	0.75" (19.1 mm)	3.25" (82.6 mm)	0.256" (6.5 mm)	0.375" (9.5 mm)	254 nm	16" (406.4 mm) / Std. conn.	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0075-03	3.95" (100.3 mm)	6.45" (163.8 mm)	0.256" (6.5 mm)	0.375" (9.5 mm)	254 nm	16" (406.4 mm) / Std. conn.	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0077-01	1.18" (29.9 mm)	3.50" (88.9 mm)	0.36" (9.2 mm)	0.50" (12.7 mm)	365 nm	6" (152 mm) / 6 pin conn.	N/A
90-0077-03	0.95" (24.1 mm)	3.50" (90.1 mm)	0.36" (9.2 mm)	0.50" (12.7 mm)	365 nm	12" (304.1 mm) / 6 pin conn.	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0079-01	1.0" (25.4 mm)	2.90" (73.7 mm)	0.36" (9.2 mm)	0.43" (10.9 mm)	365 nm	26.5" (673 mm) / Stripped	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0084-01	1.0" (25.4 mm)	3.22" (81.8 mm)	0.256" (6.5 mm)	0.375" (9.5 mm)	254 nm	14" (355.6 mm) / Std. conn	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0084-04	1.0" (25.4 mm)	3.22" (81.8 mm)	0.256" (6.5 mm)	0.44" (11.12 mm)	254 nm	14" (355.6 mm) / Stripped	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)
90-0086-03	1.75" (44.45 mm)	4.25" (107.95 mm)	0.256" (6.5 mm)	0.375" (9.5 mm)	254 nm	6" (152.4 mm) / Stripped	PS-1 99-0055-01 (115 V) 99-0055-02 (230 V)

Rare Gas Lamps
Part Number	Rare Gas Fill	Lighted Length	Total Length	Quartz Diameter	Handle Diameter	Cord Length/ Connector	Recommended Power Supply
90-0013-01	Argon	2.12" (53.8 mm)	4.62" (117.3 mm)	0.256" (6.5 mm)	0.375" (9.5 mm)	16" (406.4 mm) Std conn.	PS-3 99-0057-01 (115 V) 99-0057-02 (230 V)
90-0014-01	Krypton	2.12" (53.8 mm)	4.62" (117.3 mm)	0.256" (6.5 mm)	0.375" (9.5 mm)	16" (406.4 mm) Std conn.	PS-3 99-0057-01 (115 V) 99-0057-02 (230 V)
90-0015-01	Neon	2.12" (53.8 mm)	4.62" (117.3 mm)	0.256" (6.5 mm)	0.375" (9.5 mm)	16" (406.4 mm) Std conn.	PS-3 99-0057-01 (115 V) 99-0057-02 (230 V)
90-0016-01	Neon-Mercury	2.12" (53.8 mm)	4.62" (117.3 mm)	0.256" (6.5 mm)	0.375" (9.5 mm)	16" (406.4 mm) Std conn.	PS-3 99-0057-01 (115 V) 99-0057-02 (230 V)
90-0017-01	Xenon	2.12" (53.8 mm)	4.62" (117.3 mm)	0.256" (6.5 mm)	0.375" (9.5 mm)	16" (406.4 mm) Std conn.	PS-2 99-0056-01 (115 V) 99-0056-02 (230 V)

Zinc and Cadmium Lamps
Part Number	Lighted Length	Total Length	Quartz Diameter	Handle Diameter	Gas Fill	Cord Length/ Connector	Special	Recommended Power Supply
90-0069-05	0.79" (20 mm)	4.33" (110 mm)	0.70" (17.8 mm)	No Handle	Zinc	8" (203 mm) Stripped	8" (203 mm) Radial Leads	PS-9 99-0033-01 (115 V) 99-0033-02 (230 V) ?
90-0069-06	0.79" (20 mm)	4.33" (110 mm)	0.70" (17.8 mm)	No Handle	Zinc	8" (203 mm) Stripped	8" (203 mm) Axial Leads	PS-9 99-0033-01 (115 V) 99-0033-02 (230 V) ?
90-0069-07	0.79" (20 mm)	4.33" (110 mm)	0.70" (17.8 mm)	No Handle	Zinc	12" (304.8 mm) Stripped	12" (305 mm) Radial Leads	PS-9 99-0033-01 (115 V) 99-0033-02 (230 V) ?
90-0069-10	0.79" (20 mm)	4.33" (110 mm)	0.70" (17.8 mm)	No Handle	Zinc	8" (203 mm) Stripped	8" (203 mm) Radial Leads	PS-9 99-0033-01 (115 V) 99-0033-02 (230 V) ?
90-0069-11	0.79" (20 mm)	4.33" (110 mm)	0.70" (17.8 mm)	No Handle	Zinc	17" (431.8 mm) Stripped	17" (431.8 mm) Axial Leads	PS-9 99-0033-01 (115 V) 99-0033-02 (230 V) ?
90-0069-12	0.79" (20 mm)	4.33" (110 mm)	0.70" (17.8 mm)	No Handle	Zinc	8" (203 mm) Stripped	8" (203 mm) Radial Leads	PS-9 99-0033-01 (115 V) 99-0033-02 (230 V) ?
90-0069-14	0.79" (20 mm)	4.33" (110 mm)	0.70" (17.8 mm)	No Handle	Zinc	14" (355.6 mm) Stripped	14" (355.6 mm) Axial Leads	PS-9 99-0033-01 (115 V) 99-0033-02 (230 V) ?
90-0069-15	0.79" (20 mm)	4.33" (110 mm)	0.70" (17.8 mm)	No Handle	Zinc	8" (203 mm) Stripped	8" (203 mm) Radial Leads	PS-9 99-0033-01 (115 V) 99-0033-02 (230 V) ?
90-0069-16	0.79" (20 mm)	4.33" (110 mm)	0.70" (17.8 mm)	No Handle	Zinc	12" (304.8 mm) Stripped	12" (304.8 mm) Axial Leads	PS-9 99-0033-01 (115 V) 99-0033-02 (230 V) ?
90-0071-03	0.94" (24 mm)	4.33" (110 mm)	0.70" (17.8 mm)	No Handle	Cadmium	8" (203 mm) Stripped	8" (203 mm) Radial Leads	PS-9 99-0033-01 (115 V) 99-0033-02 (230 V) ?
90-0071-06	0.94" (24 mm)	4.33" (110 mm)	0.70" (17.8 mm)	No Handle	Cadmium	8" (203 mm) Stripped	8" (203 mm) Radial Leads	PS-9 99-0033-01 (115 V) 99-0033-02 (230 V) ?

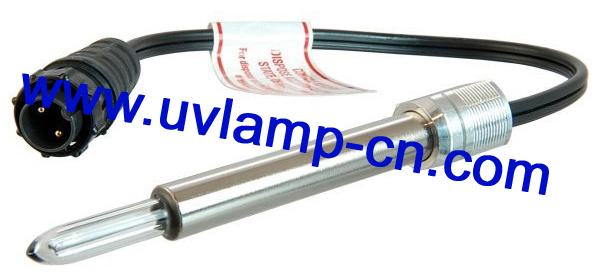

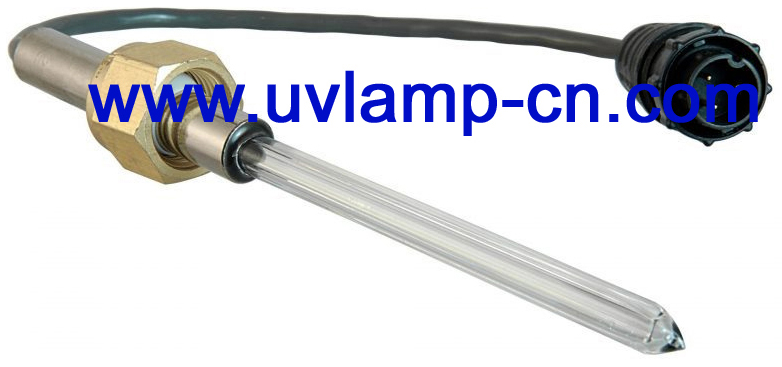

Photochemical Quartz (PCQ) Lamps
Part Number	Lighted Length	Total Length	Quartz Diameter	Handle Diameter	Primary Output	Cord Length/ Connector	Recommended Power Supply
90-0049-01	2.5" (63.5 mm)	8.38" (212.8 mm)	0.375" (9.5 mm)	0.625" (15.875 mm)	254 nm	16" (406.4 mm) Std conn.	PS-4 99-0004-01 (115 V) 99-0004-02 (230 V)
90-0049-02	4" (101.6 mm)	9.88" (250.9 mm)	0.375" (9.5 mm)	0.625" (15.875 mm)	254 nm	16" (406.4 mm) Std conn.	PS-4 99-0004-01 (115 V) 99-0004-02 (230 V)
90-0049-03	6" (152.4 mm)	11.88" (301.752 mm)	0.375" (9.5 mm)	0.625" (15.875 mm)	254 nm	16" (406.4 mm) Std conn.	PS-4 99-0004-01 (115 V) 99-0004-02 (230 V)
90-0049-07	11" (279.4 mm)	16.88" (428.752 mm)	0.375" (9.5 mm)	0.625" (15.875 mm)	254 nm	16" (406.4 mm) Std conn.	PS-4 99-0004-01 (115 V) 99-0004-02 (230 V)

UVP CP Series Calibration Lamps
Part Number	Lighted Length	Total Length	Quartz Diameter	Features	Recommended Power Supply (DC)
30-0056-01	0.81" (20.6 mm)	2.74" (69.6 mm)	0.375" (9.5 mm)	254 nm, no lamp handle 9 V battery optional	44-0002-01
30-0057-01	0.06" (1.5 mm)	1.85" (47.0 mm)	0.375" (9.5 mm)	254 nm, no lamp handle 9 V battery optional	44-0002-01

UVP Pen-Ray Field Packs
Part Number	Lighted Length	Total Length	Quartz Diameter	Handle Diameter	Primary Output
95-0256-01	1.75" (44.5 mm)	4.25" (108 mm)	0.256" (6.5mm)	0.375" (9.5 mm)	302 nm Phosphor/jacket
95-0256-02	1.75" (44.5 mm)	4.25" (108 mm)	0.256" (6.5mm)	0.375" (9.5 mm)	254 nm
95-0256-03	1.75" (44.5 mm)	4.25" (108 mm)	0.256" (6.5mm)	0.375" (9.5mm)	365 nm Phosphor/jacket and 254 nm

Dimensions
2W" x 6L" (51 x 152 mm)
3W" x 6L" (76 x 152 mm)
4W" x 8L" (102 x 203 mm)
5W" x 8L" (127 x 203 mm)
8W" x 8L" (203 x 203 mm)
10W" x 10L" (254 x 254 mm)
12W" x 12L" (305 x 305 mm)
