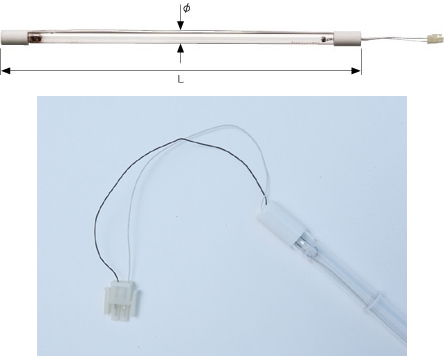

High-performance amalgam lamps (60W, 110W)
(W) |
Model |
ø (mm) |
L (mm) |
Lamp current(A) |
(mm) |
60W |
QGL60-21A/SE |
17 |
532 |
1.32 |
410 |
110W |
QGL110-21A/SE |
17 |
1022 |
1.38 |
910 |
Low-pressure mercury lamp (8W, 30W, 50W, 65W, 120W)
(W) |
Model |
ø (mm) |
L (mm) |
Lamp current(A) |
(mm) |
8W |
GL8-2-2 |
15.5 |
300 |
0.17 |
226 |
30W |
QGL30W-2 |
17.5 |
560 |
0.4 |
425 |

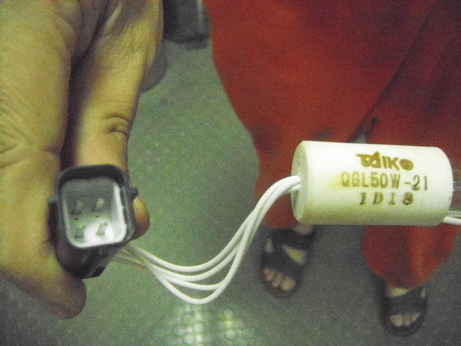

50W |
QGL50W-2 |
19.5 |
600 |
1.36 |
400 |
65W |
QGL65W-2 |
17.5 |
1055 |
0.8 |
910 |
120W |
QGL120W-2 |
21.5 |
1152 |
1.7 |
950 |
|
