Medium Wave Infrared Red Lamp

Explain/Picture

Medium Wave Infrared Red Lamp 2100W 1050W 2100W 3150W 4500W
Medium Wave Infrared Red Lamp 2100W 1050W 2100W 3150W 4500W
Medium Wave Infrared Red Lamp 2100W 1050W 2100W 3150W 4500W

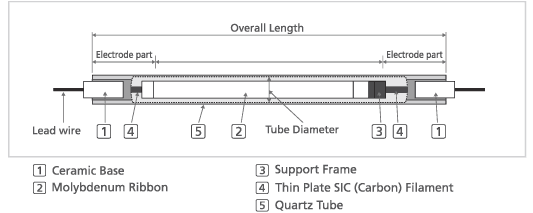

Drawing/Specifications

Model No.
Lamp Capacity
(W)
Lamp Voltage
(V)
Electrode Pard
(mm)
Overall Length
(mm)
Arc Length
(mm)
Tube Diameter
(mm)
LM-600
2100
110
45.85
720(750)
600
18
LM-350S
1050
55
45.85
480(500)
350
18
LM-700S
2100
110
45.85
830(850)
700
18
LM-1050S
3150
220
45.100
1200(1220)
1050
18
LM-1500S
4500
220
45.100
1650(1670)
1500
18
