Super High Pressure Capillary Mercury UV lamp

Explain/Picture

Capillary Mercury UV lamp
It is applied in the process of expocess of light, PCB colored cathode-ray tube or Other works by using original mercury spectrum. Especially,it depends on curtain of fluorescence,width of cover of black lead process,form and the period of exposure of light without lights by the level of strength of radiation of Arc length and lamp.
Capillary Mercury UV lamp 3000W 4000W 5000W
Capillary Mercury UV lamp 3000W 4000W 5000W
Capillary Mercury UV lamp 3000W 4000W 5000W

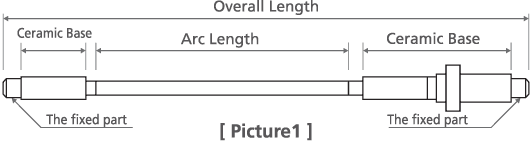

Drawing/Specifications

Model No.
Lamp Capacity
(W)
Lamp Voltage
(V)
Lamp Current
(A)
Overall Length
(mm)
Arc Length
(mm)
Tube Diameter
(mm)
FML(IML)-3000
3000
1850
1.6
265
219
6
FML(IML)-4000
4000
2600
1.6
285
239
6
FML(IML)-5000
5000
3200
1.6
290
245
6
Feature/Application


FEATURE
Super High Pressure
Capillary Type
High Efficiency
Water Cooled
Instant On/Off type

APPLICATION
Exposure
Imaging
Stencil
UV Polvmerization
