PAD1,
single lamp, dimming, instant start series, UV Electronic Ballast
| UV Electronic
Ballast (UV), is a special configuration of light source products
for sewage disposal, water plant, beverage industry, aquaculture,
swimming pools, food plants, medical institutions and other areas
of application, as easy disinfection and foreign capital effective,
preferred by the environmental protection industry.
|
 |
| Product
Type
（Model） |
Input
Voltage
(V) |
Input
current
(A) |
Input
power
(W) |
With
lamp power
(W) |
With
the number of lights（PCS） |
Starting
method（Prehat） |
Dimming
Voltage
（DC/V） |
Power
Factor(PF) |
Harmonic
distortion
(ATHD) |

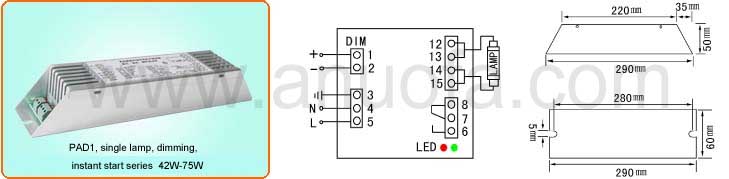

| PAD1-230-1200-1-42 |
230 |
0.20 |
46 |
42 |
1 |
Instantaneous
|
0-10 |
≥0.99 |
＜10% |
| PAD1-230-1800-1-57 |
230 |
0.28 |
64 |
57 |
1 |
Instantaneous
|
0-10 |
≥0.99 |
＜10% |
| PAD1-230-425-1-75 |
230 |
0.37 |
85 |
75 |
1 |
Instantaneous
|
0-10 |
≥0.99 |
＜10% |
| PAD1-230-800-1-75 |
230 |
0.37 |
85 |
75 |
1 |
Instantaneous
|
0-10 |
≥0.99 |
＜10% |
|
|
 |
| Product
Type（Model） |
Input
Voltage
(V) |
Input
current
(A) |
Input
power
(W) |
With
lamp power
(W) |
With
the number of lights（PCS） |
Starting
method（Prehat） |
Dimming
Voltage
（DC/V） |
Power
Factor
(PF) |
Harmonic
distortion
(ATHD) |

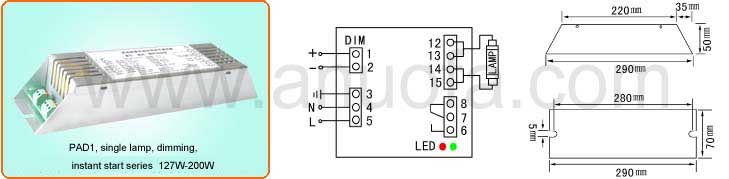

| PAD1-230-1200-1-127 |
230 |
0.61 |
140 |
127 |
1 |
Instantaneous |
0-10 |
≥0.99 |
＜10% |
| PAD1-230-1800-1-150 |
230 |
0.72 |
165 |
150 |
1 |
Instantaneous |
0-10 |
≥0.99 |
＜10% |
| PAD1-230-1000-1-155
|
230 |
0.74 |
170 |
155 |
1 |
Instantaneous |
0-10 |
≥0.99 |
＜10% |
| PD1-230-2100-1-200 |
230 |
0.96 |
220 |
200 |
1 |
Instantaneous |
0-10 |
≥0.99 |
＜10% |
|
|
 |
| Product
Type
（Model） |
Input
Voltage
(V) |
Input
current
(A) |
Input
power
(W) |
With
lamp power
(W) |
With
the number of lights
（PCS） |
Starting
method
（Prehat） |
Dimming
Voltage
（DC/V） |
Power
Factor
(PF) |
Harmonic
distortion
(ATHD) |

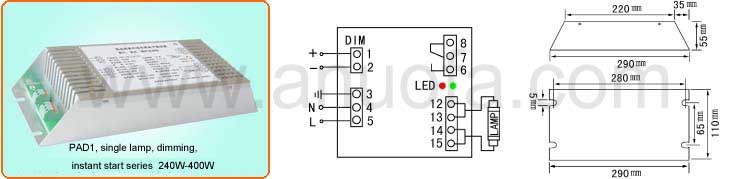

| PAD1-230-1800-1-240 |
230 |
1.15 |
260 |
240 |
1 |
Instantaneous |
0-10 |
≥0.99 |
＜10% |
| PAD1-230-3800-1-270 |
230 |
1.29 |
300 |
270 |
1 |
Instantaneous |
0-10 |
≥0.99 |
＜10% |
| PAD1-230-2100-1-320 |
230 |
1.53 |
350 |
320 |
1 |
Instantaneous |
0-10 |
≥0.99 |
＜10% |
| PAD1-230-4800-1-330 |
230 |
1.58 |
360 |
330 |
1 |
Instantaneous |
0-10 |
≥0.99 |
＜10% |
| PAD1-230-3800-1-400 |
230 |
1.91 |
440 |
400 |
1 |
Instantaneous |
0-10 |
≥0.99 |
＜10% |
|
|
Note:
1, This page describes PAD1 series, single lamp, dimming, instant
start type, the customer can directly select the product model to
buy or contact manufacturers,
2, such as housing agencies, technical specifications and capabilities
do not meet customer requirements, we can make programs, joint consultation,
tailored,
3, different brand lamp, the lamp current is not the same, the customer
provides the best lamp, the lamp according to custom, so that a
longer lamp life, UV-effective,
4, while a production input voltage AC120V and AC120V-240V (MLT),
other indicators of the same; |
Specifications:
Rated voltage
:220-240V Input Frequency: 50Hz/60Hz Power Factor: PF ≥ 0.99 Output
crest factor: CCF <1.7 Current harmonic distortion: THD <10
Voltage: 176V-264V Start:
instantaneous start-up temperature: -10-45 ℃ case the maximum temperature:
75 ℃ Dimming Voltage: DC0-5V or 0-10V |
| Supporting tube:
GPHA357T5 GPHA357T6L
GPH1554T5HO GPH893T5HO GPHHA1554T6L GPH1630T5
GPHA1000T5L GPHHA1000T6L GPH1554T5 GPH846T5HO
GPHA1000T6L GPHA843T5L GPHHA1554T10 GPH1148T5
GPHA843T6L GPHHA1310T10L G64T5L G48T5L G67T5L
GHO36T5L HO64T5L
GTUV64T5HO GXA1500T10L GIA240 GPHHA843T6L TUV330WXPT
TNNI200/107XL NNI300/147XL NNI400/147XL
NNI120/79 NNI120/80
TUV325WXPT TUV64T5 TUV270WXPT TUV250WXPT
TUVPL-L60WHO TUVPL-95WHO TUV36T5HO TUV240WXP
NNI120/84 |
Function:
Abnormal lamp protection, thermal protection, open circuit protection,
overvoltage protection, Surge protection, constant current output,
electromagnetic compatibility, lamp work to provide the feedback
signal,
Green LED indicates normal operation, the red LED indicating lamp
ballast failure or malfunction. |
