Input |
Rated voltage, frequency |
3 phase£¨4T# series£© 380V 50/60Hz£¬3 phase£¨2T# series
220V 50/60Hz |
Voltage allowable range |
-10% ¡«+15% |
Digital input DI |
3 x digital input DI1/ DI2/ DI3 (Standard configuration) |
Analog input AI |
0~10V voltage input£¨AI£©or 0~20mA current input£¨AI£© |
Output |
Output Voltage |
4T# series£º450V-3500V£¬2T# series£º100-1300V |
Output frequency |
8KHz-15KHz |
Digital output DO |
3 x digital output DO1/ DO2/ DO3 (Standard configuration) |
Analog output AO |
2 x 0.0~10.0V /0~20mA voltage output signal |
Relay contact output |
1x AC 250V/2A normally open/closed contact |
Control method |
Power vector control |
Controlling
features |
Power setting resolution |
0.1KW |
Current Restriction |
110% lamp rated current |
Voltage Restriction |
110% lamp nominal voltage |
RS485 communication |
RS485 communication interface, controlling the start and
stop of the device, reading the device status etc. |
Typical
function |
Standby function |
Automatically or manually enter standby mode to save
energy |
Lamp working time
record |
Record lamp working time when running |
Operation function |
External dry contact signal, RS485 communication signal
control facility start/stop |

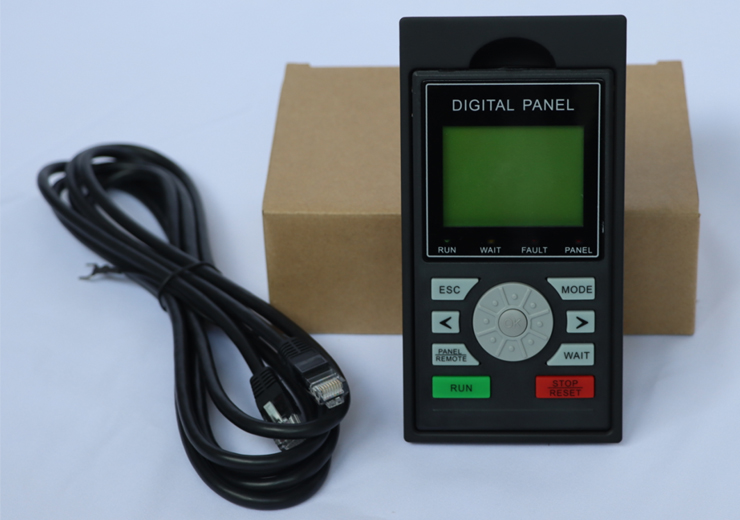

Display |
Operation
panel
display |
Monitor
status |
Real-time monitor output power, output current, output
voltage, module temperature and setting power. |
Alarm
content |
Latest 6 times malfunction record, every malfunction
code, latest malfunction trip output power, setting power,
output current, output voltage, direct voltage, module |
Protection/warning function |
3 phase current input loss phase, input under-voltage, input
over-voltage, output over-current, output short circuit, facility
overheat , temperature detection, output disconnection,
internal storage damage, etc. |
Environment |
Ambient temperature |
-10oC to +45oC£¨no freeze£© |
Ambient humidity |
90% below£¨no frosting£© |
Surroundings |
Indoor (NO direct sunlight, corrosion, inflammable gas, oil
fog, dust, etc.) |
Altitude |
Lower than 1000m |
Structure |
Protection Level |
IP20 |
Cooling method |
Forced cooling |
