PA2,
Lamps, Instant Start Series, UV Electronic Ballast
Uses:
UV Electronic Ballast (UV), is a special configuration
of light source products for sewage disposal, water plant, beverage
industry, aquaculture, swimming pools, food plants, medical institutions
and other areas of application, as easy disinfection and foreign
capital effective, preferred by the environmental protection industry. |
 |
| Product
Type
（Model） |
Input
Voltage
(V) |
Input
current
(A) |
Input
power
(W) |
With
lamp power
(W) |
With
the number of lights
（PCS） |
Starting
method
（Prehat） |
Power
Factor
(PF) |
Harmonic
distortion
(ATHD) |

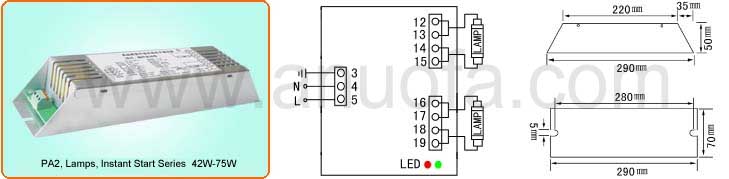

| PA2-230-1200-1-42 |
230 |
0.40 |
92 |
2×42 |
2 |
Instantaneous |
≥0.99 |
＜10% |
| PA2-230-1800-1-57 |
230 |
0.56 |
128 |
2×57 |
2 |
Instantaneous |
≥0.99 |
＜10% |
| PA2-230-425-1-75 |
230 |
0.74 |
170 |
2×75 |
2 |
Instantaneous |
≥0.99 |
＜10% |
| PA2-230-800-1-75 |
230 |
0.74 |
170 |
2×75 |
2 |
Instantaneous |
≥0.99 |
＜10% |
|
|
 |
| Product Type
（Model） |
Input Voltage
(V) |
Input current
(A) |
Input power
(W) |
With lamp power
(W) |
With the number of lights
（PCS） |
Starting method
（Prehat） |
Power Factor
(PF) |
Harmonic distortion
(ATHD) |

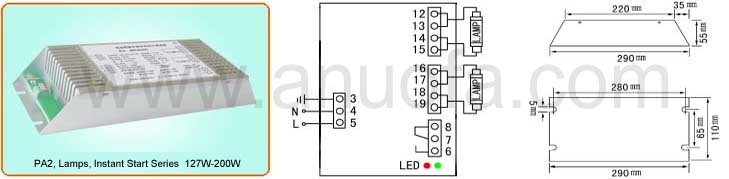

| PA2-230-1200-1-127 |
230 |
1.22 |
280 |
2×127 |
2 |
Instantaneous |
≥0.99 |
＜10% |
| PA2-230-1800-1-150 |
230 |
1.44 |
330 |
2×150 |
2 |
Instantaneous |
≥0.99 |
＜10% |
| PA2-230-1000-1-155 |
230 |
1.48 |
340 |
2×155 |
2 |
Instantaneous |
≥0.99 |
＜10% |
| PA2-230-2100-1-200 |
230 |
1.92 |
440 |
2×200 |
2 |
Instantaneous |
≥0.99 |
＜10% |
|
|
 |
| Product
Type
（Model） |
Input
Voltage
(V) |
Input
current
(A) |
Input
power
(W) |
With
lamp power
(W) |
With
the number of lights
（PCS） |
Starting
method
（Prehat） |
Power
Factor
(PF) |
Harmonic
distortion
(ATHD) |

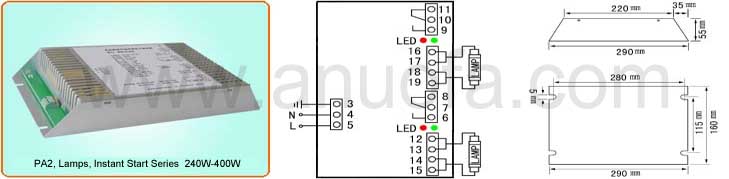

| PA2-230-1800-1-240 |
230 |
2.30 |
520 |
2×240 |
2 |
Instantaneous |
≥0.99 |
＜10% |
| PA2-230-3800-1-270 |
230 |
2.58 |
600 |
2×270 |
2 |
Instantaneous |
≥0.99 |
＜10% |
| PA2-230-2100-1-320 |
230 |
3.06 |
700 |
2×320 |
2 |
Instantaneous |
≥0.99 |
＜10% |
| PA2-230-4800-1-330 |
230 |
3.16 |
720 |
2×330 |
2 |
Instantaneous |
≥0.99 |
＜10% |
| PA2-230-3800-1-400 |
230 |
3.82 |
880 |
2×400 |
2 |
Instantaneous |
≥0.99 |
＜10% |
|
|
Note:
1, This page describes the PA2 series, dual-lamp, instant start
type, the customer can directly select the product model to buy
or contact manufacturers,
2, such as housing agencies, technical specifications and capabilities
do not meet customer requirements, we can make programs, joint consultation,
tailored,
3, different brand lamp, the lamp current is not the same, the customer
provides the best lamp, the lamp according to custom, so that a
longer lamp life, UV-effective,
4, while a production input voltage AC120V and AC120V-240V (MLT),
other indicators of the same; |
Specifications:
Rated voltage :220-240V Input Frequency: 50Hz/60 Hz Power
Factor: PF ≥ 0.99 Output crest factor: CCF <1.7 Current harmonic
distortion: THD <10
Voltage: 176V-264V Start: instantaneous start-up temperature: -10-45
℃ case the maximum temperature: 75 ℃
|
Supporting
tube:
GPHA357T5 GPH846T5HO
GPHA357T6L GPH1554T5HO
GPH893T5HO GPHHA1554T6L GPH1630T5
GPHA1000T5L
GPHHA1000T6L GPH1554T5
GPHA1000T6L GPHA843T5L GPHHA1554T10
GPH1148T5 GPHA843T6L
GPHHA1310T10L
G64T5L G48T5L
G67T5L GHO36T5L
HO64T5L
GTUV64T5HO
GXA1500T10L GIA240 GPHHA843T6L TUV330WXPT TNNI200/107XL NNI300/147XL
NNI400/147XL NNI120/79
NNI120/80
TUV325WXPT TUV64T5 TUV270WXPT TUV250WXPT
TUVPL-L60WHO TUVPL-95WHO
TUV36T5HO
TUV240WXP
NNI120/84
|
Function:
Abnormal lamp protection, thermal protection, open circuit
protection, overvoltage protection, Surge protection, constant current
output, electromagnetic compatibility, lamp work to provide the
feedback signal,
Green LED indicates normal operation, the red LED indicating lamp
ballast failure or malfunction. |
