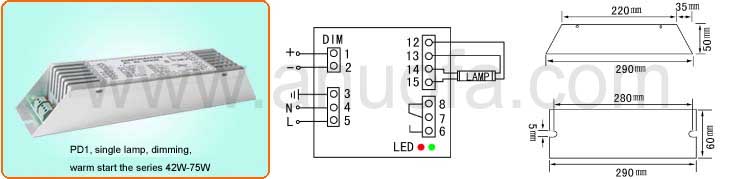

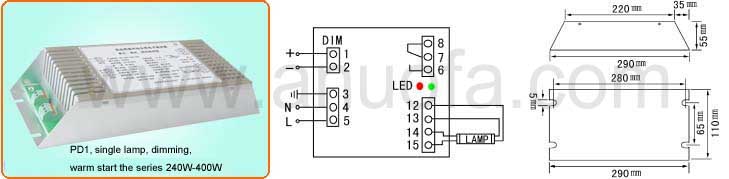

PD1,
single lamp, dimming, warm start the series, UV Electronic Ballast
| UV
Electronic Ballast (UV), is a special configuration of light source
products for sewage disposal, water plant, beverage industry, aquaculture,
swimming pools, food plants, medical institutions and other areas
of application, as easy disinfection and foreign capital effective,
preferred by the environmental protection industry |
 |
|
Product Type
（Model） |
Input Voltage
(V) |
Input current
(A) |
Input power
(W) |
With lamp
power
(W) |
With the number of lights
（PCS） |
Starting method（Prehat） |
Dimming Voltage
（DC/V） |
Power Factor
(PF) |
Harmonic distortion
(ATHD) |
| PD1-230-1200-1-42 |
230 |
0.2 |
46 |
42 |
1 |
Preheat |
0-10 |
≥0.99 |
＜10% |
| PD1-230-1800-1-57 |
230 |
0.28 |
64 |
57 |
1 |
Preheat |
0-10 |
≥0.99 |
＜10% |
| PD1-230-425-1-75 |
230 |
0.37 |
85 |
75 |
1 |
Preheat |
0-10 |
≥0.99 |
＜10% |
| PD1-230-800-1-75 |
230 |
0.37 |
85 |
75 |
1 |
Preheat |
0-10 |
≥0.99 |
＜10% |
|
|
 |
| Product
Type（Model） |
Input
Voltage(V) |
Input
current
(A) |
Input
power
(W) |
With
lamp power
(W) |
With
the number of lights（PCS） |
Starting
method
（Prehat） |
Voltage
（DC/V）
|
Power
Factor
(PF) |
Harmonic
distortion
(ATHD) |
| PD1-230-1200-1-127 |
230 |
0.61 |
140 |
127 |
1 |
Preheat |
0-10 |
≥0.99 |
＜10% |
| PD1-230-1800-1-150 |
230 |
0.72 |
165 |
150 |
1 |
Preheat |
0-10 |
≥0.99 |
＜10% |
| PD1-230-1000-1-155 |
230 |
0.74 |
170 |
155 |
1 |
Preheat |
0-10 |
≥0.99 |
＜10% |
| PD1-230-2100-1-200 |
230 |
0.96 |
220 |
200 |
1 |
Preheat |
0-10 |
≥0.99 |
＜10% |
|
|
 |
| Product
Type
（Model） |
Input
Voltage(V) |
Input
current(A) |
Input
power
(W) |
With
lamp power
(W) |
With
the number of lights
（PCS） |
Starting
method
（Prehat） |
Dimming
Voltage（DC/V） |
Power
Factor
(PF) |
Harmonic
distortion
(ATHD) |
| PD1-230-1800-1-240 |
230 |
1.15 |
260 |
240 |
1 |
Preheat |
0-10 |
≥0.99 |
＜10% |
| PD1-230-3800-1-270 |
230 |
1.29 |
300 |
270 |
1 |
Preheat |
0-10 |
≥0.99 |
＜10% |
| PD1-230-2100-1-320 |
230 |
1.53 |
350 |
320 |
1 |
Preheat |
0-10 |
≥0.99 |
＜10% |
| PD1-230-4800-1-330 |
230 |
1.58 |
360 |
330 |
1 |
Preheat |
0-10 |
≥0.99 |
＜10% |
| PD1-230-3800-1-400 |
230 |
1.91 |
440 |
400 |
1 |
Preheat |
0-10 |
≥0.99 |
＜10% |
|
|
Note:
1, This page describes the PD1 series, single lamp, dimming,
warm start type, the customer can directly select the product model
to buy or contact manufacturers,
2, such as housing agencies, technical specifications and capabilities
do not meet customer requirements, we can make programs, joint consultation,
tailored,
3, different brand lamp, the lamp current is not the same, the customer
provides the best lamp, the lamp according to custom, so that a
longer lamp life, UV-effective,
4, while a production input voltage AC120V and AC120V-240V (MLT),
other indicators of the same; |
Specifications:
Rated voltage
:220-240V Input Frequency: 50Hz/60Hz Power Factor: PF ≥ 0.99 Output
crest factor: CCF <1.7 Current harmonic distortion: THD <10
Voltage:
176V-264V Start: Preheat start working temperature: -10-45 ℃ maximum
temperature case: 75 ℃ dimming voltage: DC0-5V or 0-10V |
Supporting tube:
GPHA357T5 GPHA357T6L, , GPH1554T5HO GPH893T5HO
GPHHA1554T6L GPH1630T5 GPHA1000T5L GPH, HA1000T6L
GPH1554T5 GPH846T5HO GPHA1000T6L GPHA843T5L GPHHA1554T10
GPH1148T5 GPHA843T6L GPHHA1310T10L G64T5L G48T5L
G67T5L GHO36T5L HO64T5L GTUV64T5HO
GXA1500T10L GIA240 GPHHA843T6L TUV330WXPT TNN, , , I200/107XL
NNI300/147XL NNI400/147XL NNI120/79 NNI120/80
TUV325WXPT TUV64T5 TUV270WXPT TUV250WXPT
TUVPL-L60WHO TUVPL-95WHO TUV36T5HO TUV240WXP NNI120/84
|
Function:
Abnormal lamp protection, thermal protection, open circuit protection,
overvoltage protection, Surge protection, constant current output,
electromagnetic compatibility, lamp work to provide the feedback
signal,
Green LED indicates normal operation, the red LED indicating lamp
ballast failure or malfunction. |
R:
We are a professional R & D, production and sales of
electronic ballasts for UV-specific service providers, for the UV
ballast characteristics, customers in the use of the process, the
combination of the actual situation, we gather the elite, focused
on research and development, R & D capabilities strong uv mastered
the key core technology, innovation, the introduction of high-quality
products, according to ISO international quality system developed
a "quality manual" control in the production process in strict accordance
with "Quality Manual" effective operation, product quality is stable
and reliable. |
|
