   PN2, Lamps, Instant Start Series, UV Electronic Ballast
UV Electronic Ballast (UV), is a special configuration of light source products for sewage disposal, water plant, beverage industry, aquaculture, swimming pools, food plants, medical institutions and other areas of application, as easy disinfection and foreign capital effective, preferred by the environmental protection industry.

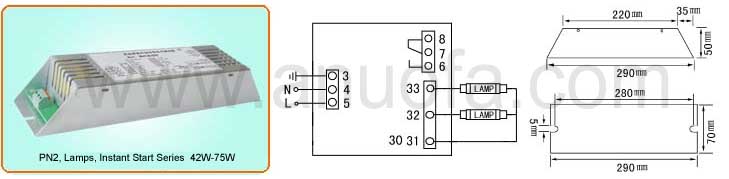

Ultraviolet Lamp,Germicidal lamp UV electronic ballast 10W,14W,17W,21W,39W,41,55W,60W,65W,75W,80W,100W,120W,150W,320W

Product Type
Model

Input Voltage
(V)

Input current
(A)

Input power
(W)

With lamp power
(W)

With the number of lights(PCS)

Starting method
Prehat

Power Factor
(PF)

Harmonic distortion
(ATHD)

 PN2-230-1200-42

230

0.40

92

2×42

2

Instantaneous

0.99

10%

PN2-230-1800-57

230

0.56

128

2×57

2

Instantaneous

0.99

10%

PN2-230-425-75

230

0.74

170

2×75

2

Instantaneous

0.99

10%

PN2-230-800-75

230

0.74

170

2×75

2

Instantaneous

0.99

10%

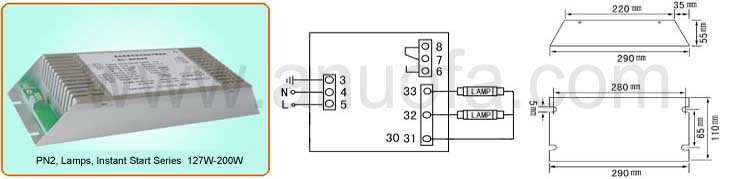

Ultraviolet Lamp,Germicidal lamp UV electronic ballast 10W,14W,17W,21W,39W,41,55W,60W,65W,75W,80W,100W,120W,150W,320W

Product TypeModel

Input Voltage
(V)

Input current
(A)

Input power
(W)

With lamp power
(W)

With the number of lights(PCS)

Starting methodPrehat

Power Factor(PF)

Harmonic distortion
(ATHD)

 PN2-230-1200-127

230

1.22

280

2×127

2

Instantaneous

0.99

10%

 PN2-230-1800-150

230

1.44

330

2×150

2

Instantaneous

0.99

10%

 PN2-230-1000-155

230

1.48

340

2×155

2

   Instantaneous

0.99

10%

 PN2-230-2100-200

230

1.92

440

2×200

2

Instantaneous

0.99

10%

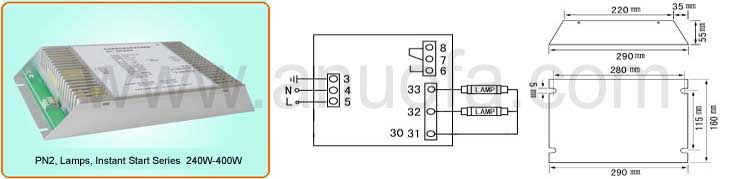

Ultraviolet Lamp,Germicidal lamp UV electronic ballast 10W,14W,17W,21W,39W,41,55W,60W,65W,75W,80W,100W,120W,150W,320W

Product Type
Model

Input Voltage
(V)

Input current
(A)

Input power
(W)

With lamp power
(W)

With the number of lights(PCS)

Starting method
Prehat

Power Factor
(PF)

Harmonic distortion
(ATHD)

 PN2-230-1800-240

230

2.30

520

2×240

2

Instantaneous

0.99

10%

 PN2-230-3800-270

230

2.58

600

2×270

2

Instantaneous

0.99

10%

 PN2-230-2100-320

230

3.06

700

2×320

2

Instantaneous

0.99

10%

 PN2-230-4800-330

230

3.16

720

2×330

2

Instantaneous

0.99

10%

 PN2-230-3800-400

230

3.82

880

2×400

2

Instantaneous

0.99

10%


Note:
1, This page describes PN2 series, dual-lamp, instant start type, the customer can directly select the product model to buy or contact manufacturers,
2, such as housing agencies, technical specifications and capabilities do not meet customer requirements, we can make programs, joint consultation, tailored,
3, different brand lamp, the lamp current is not the same, the customer provides the best lamp, the lamp according to custom, so that a longer lamp life, UV-effective,
4, while a production input voltage AC120V and AC120V-240V (MLT), other indicators of the same;

Specifications:
Rated voltage :220-240V Input Frequency: 50Hz/60 Hz Power Factor: PF ≥ 0.99 Output crest factor: CCF <1.7 Current harmonic distortion: THD <10
Voltage: 176V-264V Start: instantaneous start-up temperature: -10-45 ℃ case the maximum temperature: 75 ℃

Supporting tube:
GPHA357T5    GPHA357T6L  GPH1554T5HO  GPH893T5HO  GPHHA1554T6L  GPH1630T5  GPHA1000T5L GPHHA1000T6L  GPH1554T5  GPH846T5HO
GPHA1000T6L  GPHA843T5L  GPHHA1554T10  GPH1148T5  GPHA843T6L  GPHHA1310T10L G64T5L  G48T5L  G67T5L  GHO36T5L  HO64T5L
GTUV64T5HO   GXA1500T10L GIA240 GPHHA843T6L TUV330WXPT  TNNI200/107XL  NNI300/147XL  NNI400/147XL  NNI120/79  NNI120/80
TUV325WXPT   TUV64T5  TUV270WXPT  TUV250WXPT  TUVPL-L60WHO  TUVPL-95WHO  TUV36T5HO  TUV240WXP   NNI120/84

Function:
Abnormal lamp protection, thermal protection, open circuit protection, overvoltage protection, Surge protection, constant current output, electromagnetic compatibility, lamp work to provide the feedback signal,
Green LED indicates normal operation, the red LED indicating lamp ballast failure or malfunction.

R:
We are a professional R & D, production and sales of electronic ballasts for UV-specific service providers, for the UV ballast characteristics, customers in the course of the combination of the actual situation, we gathered the elite, focused on research and development, R & D strength master key UV core technology, innovation, the introduction of high-quality products, according to ISO international quality system developed a "Quality Manual" control in the production process in strict accordance with "Quality Manual" effective operation, product quality is stable and reliable.
