PH1,
single lamp, warm start, UV Electronic
Ballast
|
| UV Electronic Ballast (UV), is a
special configuration of light source products for
sewage, water plant, beverage industry, aquaculture,
swimming pools, food plants, medical institutions and
other areas of application, as easy disinfection and
foreign capital effective, preferred by the
environmental protection
industry. | |
 |
|
Product
Type
（Model） |
Input
Voltage
(V) |
Input
current
(A) |
Input power(W) |
With
lamp power
(W) |
With
the number of lights
（PCS） |
Starting
method
（Prehat） |
Power
Factor
(PF) |
Harmonic distortion
(ATHD) |
|

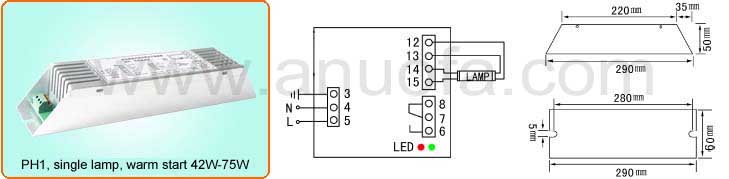

PH1-230-1200-1-42 |
230 |
0.2 |
46 |
42 |
1 |
Preheat |
≥0.99 |
＜10% |
|
PH1-230-1800-1-57 |
230 |
0.28 |
64 |
57 |
1 |
Preheat |
≥0.99 |
＜10% |
|
PH1-230-425-1-75 |
230 |
0.37 |
85 |
75 |
1 |
Preheat |
≥0.99 |
＜10% |
|
PH1-230-800-1-75 |
230 |
0.37 |
85 |
75 |
1 |
Preheat |
≥0.99 |
＜10% |
| |
 |
| Product
Type
（Model） |
Input
Voltage(V) |
Input
current
(A) |
Input
power
(W) |
With
lamp power
(W) |
With
the number of lights
（PCS） |
Starting
method
（Prehat） |
Power
Factor
(PF) |
Harmonic
distortion
(ATHD) |

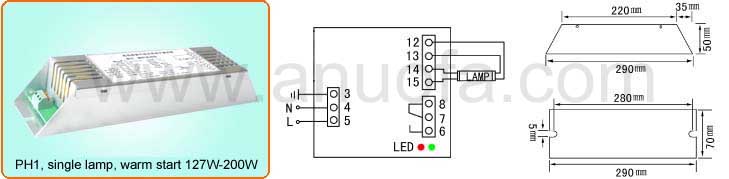

| PH1-230-1200-1-127 |
230 |
0.61 |
140 |
127 |
1 |
Preheat |
≥0.99 |
＜10% |
| PH1-230-1800-1-150 |
230 |
0.72 |
165 |
150 |
1 |
Preheat |
≥0.99 |
＜10% |
| PH1-230-1000-1-155 |
230 |
0.74 |
170 |
155 |
1 |
Preheat |
≥0.99 |
＜10% |
| PH1-230-2100-1-200 |
230 |
0.96 |
220 |
200 |
1 |
Preheat |
≥0.99 |
＜10% |
|
|
 |
|
Product Type
（Model） |
Input
Voltage
(V) |
Input
current
(A) |
Input
power
(W) |
With
lamp power
(W) |
With
the number of lights
（PCS） |
Starting
method
（Prehat） |
Power
Factor
(PF) |
Harmonic
distortion
(ATHD) |
|

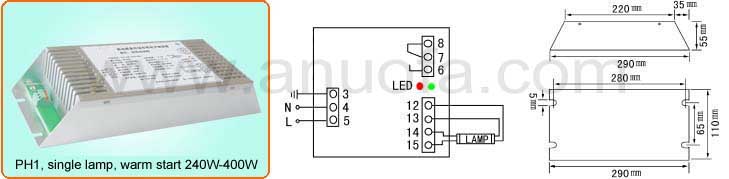

PH1-230-1800-1-240 |
230 |
1.15 |
260 |
240 |
1 |
Preheat |
≥0.99 |
＜10% |
|
PH1-230-3800-1-270 |
230 |
1.29 |
300 |
270 |
1 |
Preheat |
≥0.99 |
＜10% |
|
PH1-230-2100-1-320 |
230 |
1.53 |
350 |
320 |
1 |
Preheat |
≥0.99 |
＜10% |
|
PH1-230-4800-1-330 |
230 |
1.58 |
360 |
330 |
1 |
Preheat |
≥0.99 |
＜10% |
|
PH1-230-3800-1-400 |
230 |
1.91 |
440 |
400 |
1 |
Preheat |
≥0.99 |
＜10% |
|
|
Note:
1, This page describes PH1 series, single lamp,
warm-start type, the customer can directly select the
product model to buy or contact manufacturers,
2,
such as housing agencies, technical specifications and
capabilities do not meet customer requirements, we can
make programs, joint consultation, tailored,
3,
different brand lamp, the lamp current is not the same,
the customer provides the best lamp, the lamp according
to custom, so that a longer lamp life, UV-effective,
4, while a production input voltage AC120V and
AC120V-240V (MLT), other indicators of the
same;
|
Specifications:
Rated voltage :220-240V Input Frequency: 50Hz/60 Hz Power
Factor: PF ≥ 0.99 Output crest factor: CCF <1.7 Current harmonic
distortion: THD <10
Voltage: 176V-264V Start: Preheat start working temperature: -10-45
℃ maximum temperature case: 75 ℃ |
Supporting
tube:
GPHA357T5 GPHA357T6L
GPH1554T5HO
GPH893T5HO
GPHHA1554T6L GPH1630T5 GPHA1000T5L
GPHHA1000T6L
GPH1554T5
GPH846T5HO
GPHA1000T6L GPHA843T5L GPHHA1554T10
GPH1148T5 GPHA843T6L GPHHA1310T10L
G64T5L G48T5L G67T5L GHO36T5L HO64T5L
GTUV64T5HO
GXA1500T10L GIA240 GPHHA843T6L TUV330WXPT TNNI200/107XL NNI300/147XL
NNI400/147XL NNI120/79 NNI120/80
TUV325WXPT TUV64T5 TUV270WXPT TUV250WXPT TUVPL-L60WHO TUVPL-95WHO TUV36T5HO
TUV240WXP NNI120/84
|
Function:
Abnormal lamp protection, thermal
protection, open circuit protection, overvoltage
protection, Surge protection, constant current output,
electromagnetic compatibility, lamp work to provide the
feedback signal,
Green LED indicates normal
operation, the red LED indicating lamp ballast failure
or malfunction.
|
|
